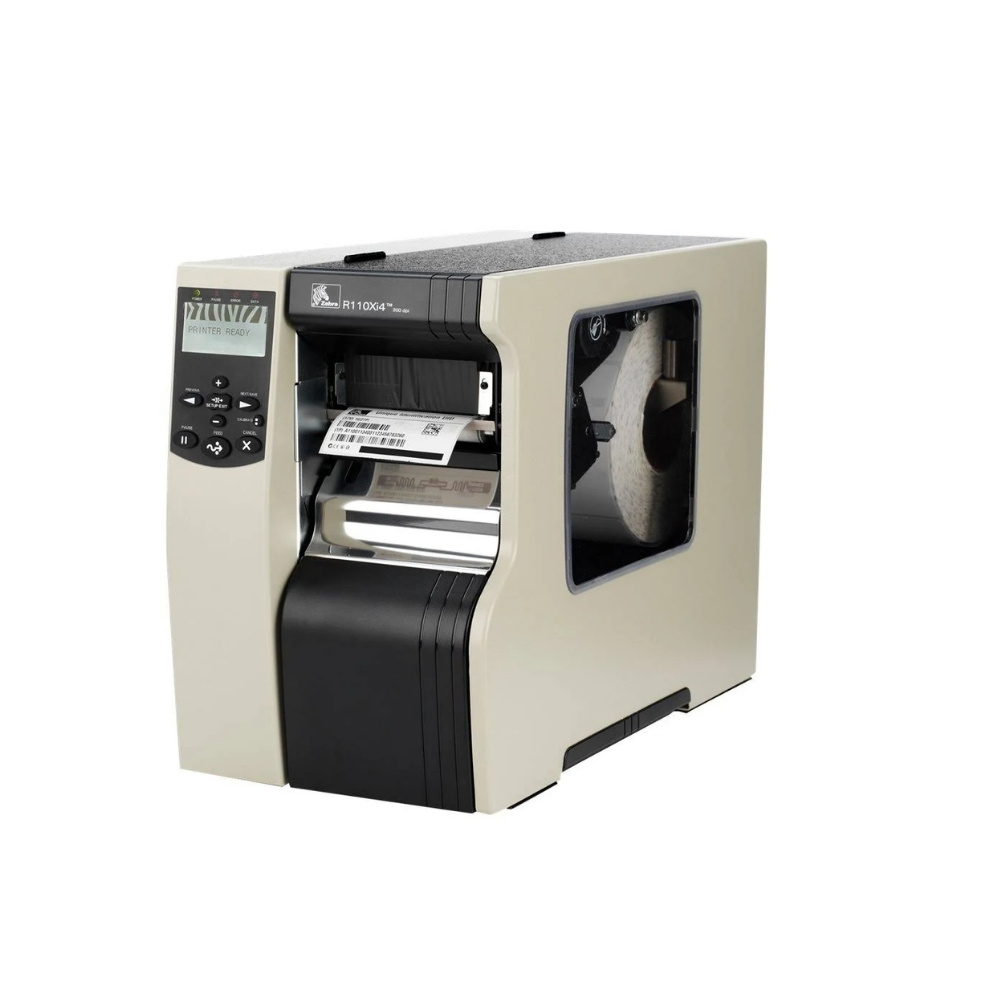

R110Xi4

More Standard Features

• Variable RFID power settings for both read and write allows maximum flexibility for printing small labels
• New full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection
• Clear media side door — easy monitoring without opening the printer
• Thin film printhead — with E3® Element Energy Control
• 8 MB Flash memory — including 2.0 MB user-available non-volatile memory storage for downloadable objects
• RS-232 Serial, Parallel, USB 2.0, and internal ZebraNet 10/100 PrintServer
• Dual media sensors — transmissive and reflective, selectable through software or front panel
• Real Time Clock
• Advanced Label/Media counters

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory: 16MB RAM
8MB Flash (2 MB available to user)
Print width: 4″ (102 mm) maximum
Print length: 150″ (3810 mm) maximum
Print speed: Up to 14″ (356mm) per second
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: .79″ (20 mm) to 4.5″ (114 mm)
Maximum label and liner length: 150″ (3810 mm)
Media types: continuous, die-cut, black mark, notch

Ribbon Characteristics

Outside diameter: 3.2″ (81.3 mm)
Standard length: 1476′ (450 m) or 984′ (300 m)
Ratio: 2:1 and 3:1 media roll to ribbon ratios
Ribbon: setup Ribbon wound coated side out
ID Core: 1″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20 to 85% non-condensing R.H.
Electrical

• 90-264VAC
• 48 – 62Hz
• FCC-B, C-Tick

Agency approvals

• IEC 60950-1
• EN 55022 Class B
• EN 55024
• EN 61000-3-2
• EN 61000-3-3

Physical Characteristics

Width: 10.31″ (261.9 mm)
Height: 15.5″ (393.7 mm)
Depth: 20.38″ (517.5 mm)
Weight: 50 lbs (22.7 kg)

Related Products

Options

• ZebraDesigner Pro
• ZebraDesigner
• ZebraDesigner for my XML
• Zebranet Bridge Enterprise
• ZebraNet utilities v7.0
• Clear media side bi-fold door – allows shorter media door opening radius
• Full-width rotary knife cutter and catch tray – operates under software control cutting labels individually or in strips
• Media rewind spindle – rewinds finished roll internally onto 3 in (76 mm) core or enables label peel and liner rewind
• Applicator interface – provides status and control signals for applicators and remote control devices
• media supply spindle for 3 in (76 mm) core or 40 mm core
• Flash Memory – factory installed 64 MB (61 MB user avilable)
• Additional Fonts
• ZebraNet b/g Print Server

Communication and Interface Capabilities

• ZebraNet 10/100 Print Server — supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks
• USB 2.0 — 12 Mbits/second
• High-speed bi-directional parallel interface — IEEE 1284-1994 compatibility, ECP, nibble mode
• High-speed serial interfaces: RS-232C with DB9F connector, optional converter for DB25F available; Optional RS-422/485 with multidrop capability to network multiple printers from a single host with external adapter; Software (XON/XOFF) or hardware (DTR/DSR) communication handshake protocols
• SEH PS102-Z Internal IPv6 Print Server
• Applicator interface — with DB15F connector
• ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL, ZPL II

Bar Codes/Symbologies

• Linear Code 11
• Code 39
• Code 93
• Code 128 with subsets A/B/C and UCC case codes
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• UPC and EAN 2 or 5 digit extensions
• Plessey
• Postnet
• Standard 2-of-5
• Industrial 2-of-5
• Interleaved 2-of-5
• Logmars
• MSI
• Codabar
• Planet Code
• 2-dimensional Codablock
• PDF417
• Code 49
• Data Matrix
• MaxiCode
• QR Code
• TLC 39
• MicroPDF
• RSS / GS1 DataBar family (12 barcodes)
• Aztec
• Fonts and Graphics
• Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
• Smooth scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
• IBM Code Page 850 International Characters
